Rockwell American Hub/Drum, 12K Capacity Per Pair, 4.88" Pilot Diameter, #160 Spindle, Oil Bath Lube, 8 on 6.5" Bolt Pattern, 5/8" Stud Diameter, Two Piece Unit
SKU: 912865-1
|
Reference Number: 111943
Brand: Rockwell American
$421.36
Buy at a location near you -
Find a Dealer
Business Customers can login to:
- See account pricing and available inventory
- Manage account invoices
Details
| Bolt Pattern | 8 on 6.5" |
|---|---|
| Brake Size | 12-1/4" x 5" |
| Axle Capacity Rating Per Pair | 12K |
| Fits Spindle | #160 |
| Stud Size | 5/8" |
| For Use With | Rockwell 12K Lbs HD Axles |
| Hub Drum Pilot Diameter | 4.88" |
| Inner Bearing Part Number | 39590 |
| Lubrication | Oil Bath |
| Nut Feature | Hex Wheel Nut, Flange |
| Outer Bearing Part Number | JM205149 |
| Thread Count | 18 |

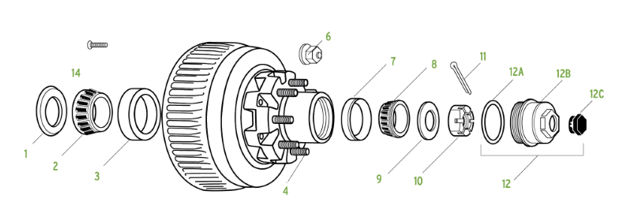

| PART # | REF # | DESCRIPTION | DIAGRAM # |
| 10-56 | 162000 | OIL SEAL, 4.5ODX3.125ID DEXTER 10-15K, AL-KO 10-12K | 1 |
| 39590 | 130805 | BEARING, INNER, FOR ROCKWELL10K HD-16K AXLES, 2.625 I.D. | 2 |
| 39520 | 130810 | RACE, INNER. FOR ROCKWELL 12K AND 16K AXLES, 4.4375 O.D. | 3 |
| 4738-28 | 111936 | STUD, .625-18X2.75, DRIVE-IN 10K ONEPIECE DRUM 12K '08-'21 | 4 |
| 6-209 | 141610 | HEX WHEEL NUT, 2-PIECE SWIVEL, FLANGED, 5/8-18 X 1-1/16 | 6 |
| JM205110 | 138200 | RACE, FOR JM205149 | 7 |
| JM205149 | 132600 | BEARING, 1.969 ID | 8 |
| 47128 | 167210 | WASHER, 1.75, SPINDLE, PLAIN | 8 |
| 6-84 | 165400 | SPINDLE NUT, 1 3/4 FINE THREAD | 7 |
| CP-3 | 101205 | PIN, COTTER, .25X3 (019-040-00) | 11 |
| 12011-1 | 153805 | CAP ASSY, OIL, 3.75-8, O-RING/PLUG, 10-16K QRG, HAYES/AL-KO | 12 |
| V75340 | 153806 | O-RING, OIL CAP, 3.35DIA X 0.21 FLOUROCARBON RUBBER | 12A |
| 1201G | 153807 | GREASE CAP, 3.75-8 SCREW-IN, 9-12K GREASE ONLY | 12B |
| 12011 | 153808 | CAP, OIL, 3.75-8, SCREW-IN, 9-16K QRG (POST'96), HAYES/AL-KO | 12B |
| RP-200 | 155401 | PLUG, RUBBER. 6-15K QRG AND DEXTER OIL CAP (046-220-00) | 12C |
