Rockwell American Hub/Drum, 10K Capacity Per Pair, Armature Plate, #99 Spindle, Oil Bath Lube, 8 on 6.5" Bolt Pattern, 5/8" Stud Diameter, 4.75" Pilot Diameter, One Piece Unit
SKU: 99865-1P475AB
|
Reference Number: 111934
Brand: Rockwell American
$318.70
Buy at a location near you -
Find a Dealer
Business Customers can login to:
- See account pricing and available inventory
- Manage account invoices
Alternate Item Numbers
7650276
Details
| Bolt Pattern | 8 on 6.5" |
|---|---|
| Brake Size | 12-1/4" x 3-3/8" |
| Axle Capacity Rating Per Pair | 10K |
| Fits Spindle | #99 |
| Stud Size | 5/8" |
| For Use With | Rockwell 10K Lbs Axles |
| Hub Drum Pilot Diameter | 4.75" |
| Inner Bearing Part Number | 28580 |
| Lubrication | Oil Bath |
| Nut Feature | Hex Wheel Nut, Flange |
| Outer Bearing Part Number | 25580 |
| Thread Count | 18 |

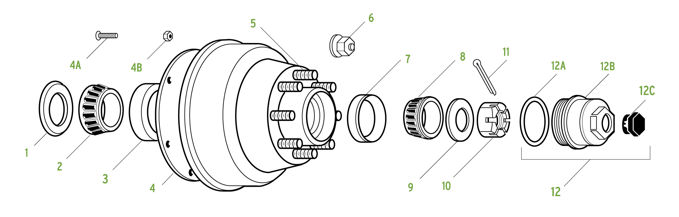

| PART # | REF # | DESCRIPTION | DIAGRAM # |
| CR27438 | 163005 | SEAL, 2.75X3.784OD, 99 SPINDLE UNITIZED | 1 |
| 28580 | 132200 | BEARING, 2.000 ID | 2 |
| 28521 | 136800 | RACE, FOR 28580 | 3 |
| 10KARM120 | 111936 | DIS-PLATE, ARMATURE, 12.25 ELEC BRK 4.75 ID | 4 |
| FL14201 | 111937 | SCREW, .25-20X1.25, FLAT HEAD, ARMATURE PLATE | 4A |
| 14LN | 111938 | HEX LOCKNUT, .25-20 FOR SUSPENSION BOLTS | 4B |
| 4738-28 | 145007 | STUD, .625-18X2.75, DRIVE-IN 10K ONEPIECE DRUM 12K '08-'21 | 5 |
| 6-209 | 141610 | HEX WHEEL NUT, 2-PIECE SWIVEL, FLANGED, 5/8-18 X 1-1/16 | 6 |
| 25520 | 136200 | RACE, FOR 25580 | 7 |
| 25580 | 130800 | BEARING, 1.750 ID | 8 |
| D005-224-00 | 167205 | WASHER, PLAIN 1 1/2 .156 | 9 |
| 90623 | 165600 | SPINDLE NUT, 1 1/2 FINE THREAD (CASTLE NUT) | 10 |
| CP-3 | 101205 | PIN, COTTER, .25X3 (019-040-00) | 11 |
| 12011-1 | 153805 | CAP ASSY, OIL, 3.75-8, O-RING/PLUG, 10-16K QRG, HAYES/AL-KO | 12 |
| V75340 | 153806 | O-RING, OIL CAP, 3.35DIA X 0.21 FLOUROCARBON RUBBER | 12A |
| 1201G | 153807 | GREASE CAP, 3.75-8 SCREW-IN, 9-12K GREASE ONLY | 12B |
| 12011 | 153808 | CAP, OIL, 3.75-8, SCREW-IN, 9-16K QRG (POST'96), HAYES/AL-KO | 12B |
| RP-200 | 155401 | PLUG, RUBBER. 6-15K QRG AND DEXTER OIL CAP (046-220-00) | 12C |
