Dexter 7,200 Lbs Per Pair Capacity (3,600 Lbs Each) 12-1/4" x 2-1/2" Manual Adjust Electric Drum Brake Assembly Complete, Right Side, 4-Bolt Mount, Black Painted Finish
SKU: K23-429-00
|
Reference Number: 185412
Brand:: Dexter
$396.86
Buy at a location near you -
Find a Dealer
Business Customers can login to:
- See account pricing and available inventory
- Manage account invoices
| Dx Part No | Quantity | Description | |
| 023-429-00 | 1 | 12-1/4" X 2-1/2" 7.2K Electric Brake, Right Hand |
Alternate Item Numbers
23-429, 27-456-1, 274625, 49-158, 6400058, 71-495, 74-023-429-00, C06-K23-429-00, K71-495, K71-495-00
Details
| Brake Type | Electric Brake |
|---|---|
| Brake Adjustment Type | Manual Adjust |
| Brake Size | 12-1/4" x 2-1/2" |
| Axle Capacity Rating Per Pair | 7.2K |
| Brake Orientation | Right Side |
| Brake Backing Plate Mounting Bolt Holes | 4 |
| Brake Mounts To | Axle Brake Flange / Spindle |
| Brake Backing Plate Material | Steel |
| Brake Backing Plate Finish | Painted |
| Brake Shoes / Pads Material | Semi-metallic |
| Brake Backing Plate Color | Black |
| Mounting Hardware | Included |
| Package Type | Retail Packaged |
Shipping Info
| Package Weight | 21 Lbs |
|---|

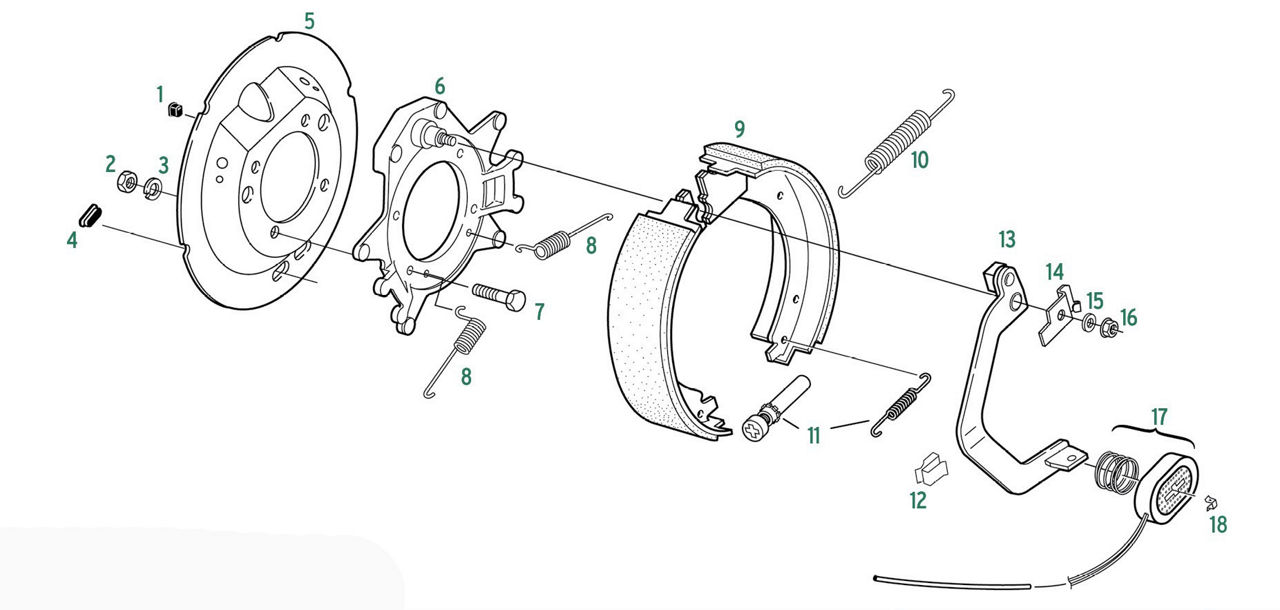

| PART # | REF # | DESCRIPTION | DIAGRAM # |
| D046-016-00 | 236506 | WIRE GROMMET | 1 |
| 6-46 | 193000 | BRAKE MOUNTING NUT | 2 |
| D005-058-00 | 192005 | LOCKWASHER, 1/2" | 3 |
| BP10-220 | 225100 | ADJUSTER SLOT PLUG, 4-PACK | 4 |
| 36-118-20 | 231110 | DUST SHIELD | 5 |
| 36-119-2 | 236512 | BACKING PLATE | 6 |
| 7-97 | 192800 | BRAKE MOUNTING BOLT | 7 |
| BP07-195 | 218100 | SHOE CENTERING SPRING, CAST BACKING PLATE, AFTER 05/01/2000 | 8 |
| BP04-235 | 208100 | SHOE & LINING, BEFORE 05/01/2000 | 9 |
| BP04-238 | 208120 | SHOE & LINING, CAST BACKING PLATE, AFTER 05/01/2000 | 9 |
| BP07-190 | 218000 | SHOE RETURN SPRING | 10 |
| K71-411-00 | 222905 | ADJUSTER & SPRING KIT | 11 |
| 27-39 | 236521 | MAGNET WIRE CLIP | 12 |
| 47-125-5 | 202501 | MAGNET ACTUATING ARM | 13 |
| 71-455-2 | 215405 | ACTUATING ARM RETAINER | 14 |
| 5-142 | 190980 | BRAKE MOUNTING WASHER | 15 |
| 6-92 | 192600 | 7/16"-20 FLANGE LOCKING NUT | 16 |
| BP01-330 | 197630 | MAGNET KIT, OVAL (RED WIRE) | 17 |
| BP19-005 | 236505 | MAGNET WIRE CLIP, 4-PACK | 18 |
