Dexter 15,000 lbs Per Pair Capacity (7,500 lbs Each) 12-1/4" x 5" Nev-R-Adjust® Electric Drum Trailer Brake, Right Side, 7-Bolt Mount, Boxed
SKU: K23-447-00
|
Reference Number: 188841
Brand: Dexter
$437.93
Buy at a location near you -
Find a Dealer
Business Customers can login to:
- See account pricing and available inventory
- Manage account invoices
Alternate Item Numbers
023-447-00, 23-447, 27-455-1, 274615, 49-253, 6400024, 71-485, 74-023-447-00, C07-K23-447-00, D023-447-00, K23-205-00, K23-447, K23-468-00, K71-485, K71-485-00
Details
| Brake Type | Electric Brake |
|---|---|
| Brake Adjustment Type | Forward Self-Adjust |
| Brake Size | 12-1/4" x 5" |
| Axle Capacity Rating Per Pair | 15K |
| Brake Orientation | Right Side |
| Brake Backing Plate Mounting Bolt Holes | 7 |
| Brake Mounts To | Axle Brake Flange / Spindle |
| Brake Backing Plate Material | Steel |
| Brake Backing Plate Finish | Painted |
| Brake Shoes / Pads Material | Semi-metallic |
| Brake Backing Plate Color | Black |
| Mounting Hardware | Included |
| Package Type | Retail Packaged |
Shipping Info
| Package Weight | 22.65 Lbs |
|---|

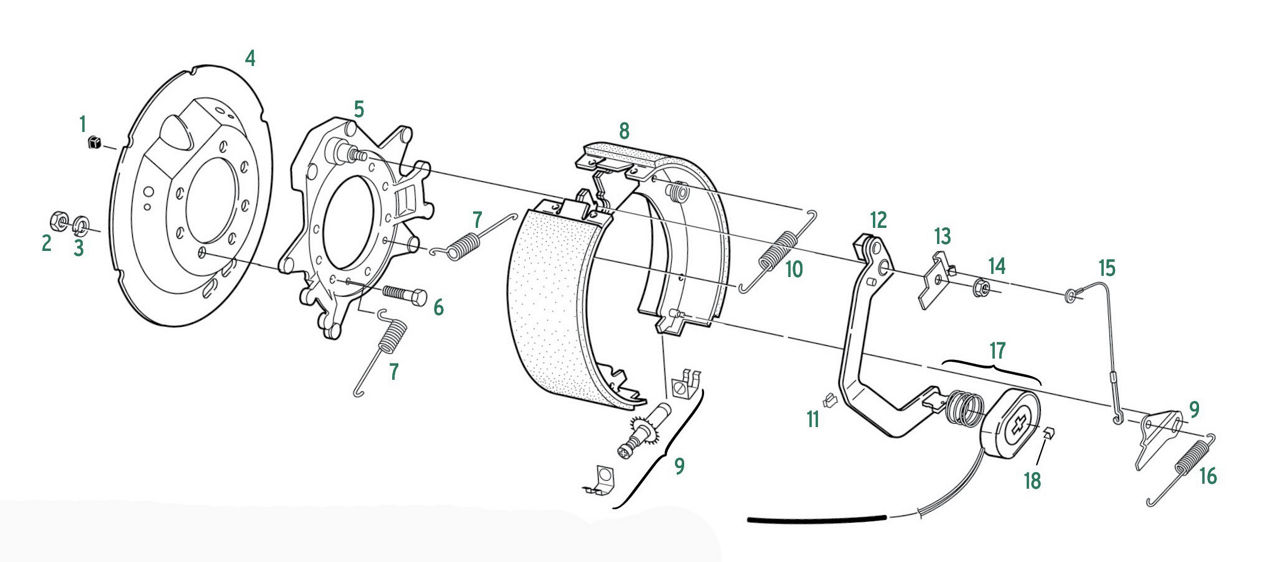

| PART # | REF # | DESCRIPTION | DIAGRAM # |
| D046-016-00 | 236506 | WIRE GROMMET | 1 |
| 6-17 | 191800 | 7/16"-20 BRAKE MOUNTING NUT | 2 |
| 5-8 | 192000 | 7/16" BRAKE MOUNTING LOCK WASHER | 3 |
| BP15-190 | 231100 | DUST SHIELD | 4 |
| 36-120-2 | 236513 | BACKING PLATE | 5 |
| 7-116 | 192200 | 7/16"-20 BRAKE MOUNTING BOLT | 6 |
| BP07-195 | 218100 | SHOE CENTERING SPRING | 7 |
| BP04-375 | 210610 | SHOE & LINING | 8 |
| BP10-146 | 223910 | ADJUSTER, LEVER & CLIPS | 9 |
| BP07-190 | 218000 | SHOE RETURN SPRING | 10 |
| 27-39 | 236521 | MAGNET WIRE CLIP | 11 |
| 47-123-35 | 204235 | ACTUATING ARM | 12 |
| 71-455-2 | 215405 | ACTUATING ARM RETAINER | 13 |
| 6-92 | 192600 | 7/16"-20 FLANGE LOCKING NUT | 14 |
| BP13-022 | 225402 | ADJUSTER CABLE, 10" LONG | 15 |
| BP08-155 | 220910 | ADJUSTER SPRING | 16 |
| BP01-330 | 197630 | BRAKE MAGNET DEXTER 12.25" AFTER 7.1.2017 RED/BLACK WIRE | 17 |
| BP19-005 | 236505 | MAGNET RETAINER CLIP, 4-PACK | 18 |
