Dexter 7,000 lbs Per Pair Capacity (3,500 lbs Each) 12" x 2" Hydraulic Freebacking Left Side Trailer Brake Assembly, 5-Bolt Mount, Black Painted Finish, Bulk
SKU: 23-342
|
Reference Number: 175500
Brand: Dexter
- Genuine Dexter Replacement Part
- CSA Approved Brakes
- All kits are USA made and assembled, and ready to install
- Best in class engineering, warranty, and track record
- Made from high quality domestic steel specifically designed to ensure maximum performance. No imported or substituted components
- Industry leading proven performance in stopping power
- Warranty: 5 Year Premium Warranty
- Mfg SKU: 023-342-00
$182.84
Buy at a location near you -
Find a Dealer
Business Customers can login to:
- See account pricing and available inventory
- Manage account invoices
Dexter 12" x 2" Left Hand hydraulic complete brake assembly. Features: 7000lb capacity per pair. Mounts with 5 bolts (not included). Single Servo - Single plunger comes from the wheel cylinder (Most Common Style) Uses 12" Hub/Drums.
Nuts-38N, bolts-7-5, and washers-38LW sold separately.
Nuts-38N, bolts-7-5, and washers-38LW sold separately.
• Fits standard 7000lb axle with a 5 bolt pattern on the mounting flange.
• Free backing(allows you to back up without having to set a lever or release)
• Left Hand(driver's side)
• Complete assembly ready to bolt on and install
• For use with a 12" inside diameter drum
• The shoes are 2" wide
Alternate Item Numbers
023-342-00, K23-342-00
Details
| Brake Type | Hydraulic Freebacking |
|---|---|
| Brake Size | 12" x 2" |
| Axle Capacity Rating Per Pair | 7K |
| Brake Orientation | Left Side |
| Brake Backing Plate Mounting Bolt Holes | 5 |
| Brake Mounts To | Axle Brake Flange / Spindle |
| Brake Caliper / Cylinder Type | Single Servo |
| Mounting Bolt Size | 3/8"-24 |
| Brake Magnet Shape | Oval |
| Fits Spindle | #42 2.250" Spindle 5.2K - 6K 8-Bolt |
| Brake Backing Plate Material | Steel |
| Brake Backing Plate Finish | Painted |
| Kitted Options With Hardware | K23-342-00 |
| Brake Backing Plate Color | Black |
| Mounting Hardware | Not Included |
| Package Type | Bulk Packaged |
Shipping Info
| Package Height | 2.85 inches |
|---|---|
| Package Width | 13.5 inches |
| Package Length | 13.5 inches |
| Package Weight | 11.5 Lbs |

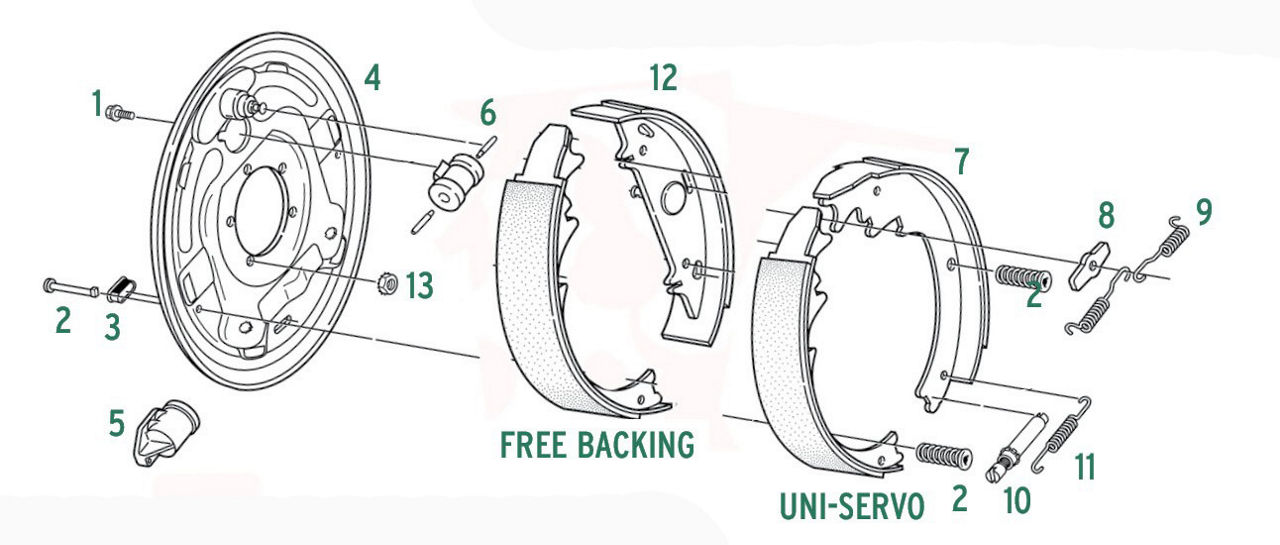

| PART # | REF # | DESCRIPTION | DIAGRAM # |
| 87-1 | 235034 | SCREW AND WASHER ASSEMBLY | 1 |
| BP06-090 | 212400 | SHOE HOLD DOWN SPRINGS | 2 |
| BP10-220 | 225100 | ADJUSTER SLOT PLUGS, 4 PACK | 3 |
| 36-93-8 | 235039 | BACKING PLATE, 7,000 LBS | 4 |
| BP17-030 | 233400 | WHEEL CYLINDER ASSEMBLY, UNI-SERVO | 5 |
| BP17-050 | 233800 | WHEEL CYLINDER ASSEMBLY, DUO-SERVO | 6 |
| BP04-160 | 206000 | SHOE & LINING, UNI-SERVO | 7 |
| D005-113-00 | 235035 | 1/2" WING WASHER | 8 |
| BP07-175 | 217700 | SHOE RETURN SPRING | 9 |
| BP10-080 | 222800 | ADJUSTER, FREE BACKING | 10 |
| BP10-045 | 222100 | ADJUSTER | 10 |
| BP08-120 | 220400 | ADJUSTER SPRING | 11 |
| D046-123-00 | 220952 | ADJUSTER SPRING, FREE BACKING | 11 |
| BP04-164 | 206200 | SHOE & LINING, DEXTER FREE BACKING | 12 |
| BP04-168 | 206300 | SHOE & LINING, DEMCO FREE BACKING | 12 |
| 6-193 | 192010 | BRAKE MOUNTING NUT/WASHER | 13 |
| BP07-121 | 216830 | PRIMARY SHOE RETURN SPRINGS, DEXTER FREE BACKING | NS |
| BRK-DEM12HFB-SRS | 216851 | PRIMARY SHOE RETURN SPRINGS, DEMCO FREE BACKING | NS |
