Dexter 9,000 - 12,000 Per Pair Capacity (6,000 lbs Each) 12-1/4" x 5" Manual Adjust Duo-Servo Hydraulic Drum, Left or Right Side Trailer Brake, 5-Bolt Mount, Retail Boxed
SKU: K23-524-00
|
Reference Number: 177800
Brand:: Dexter
$425.35
Buy at a location near you -
Find a Dealer
Business Customers can login to:
- See account pricing and available inventory
- Manage account invoices

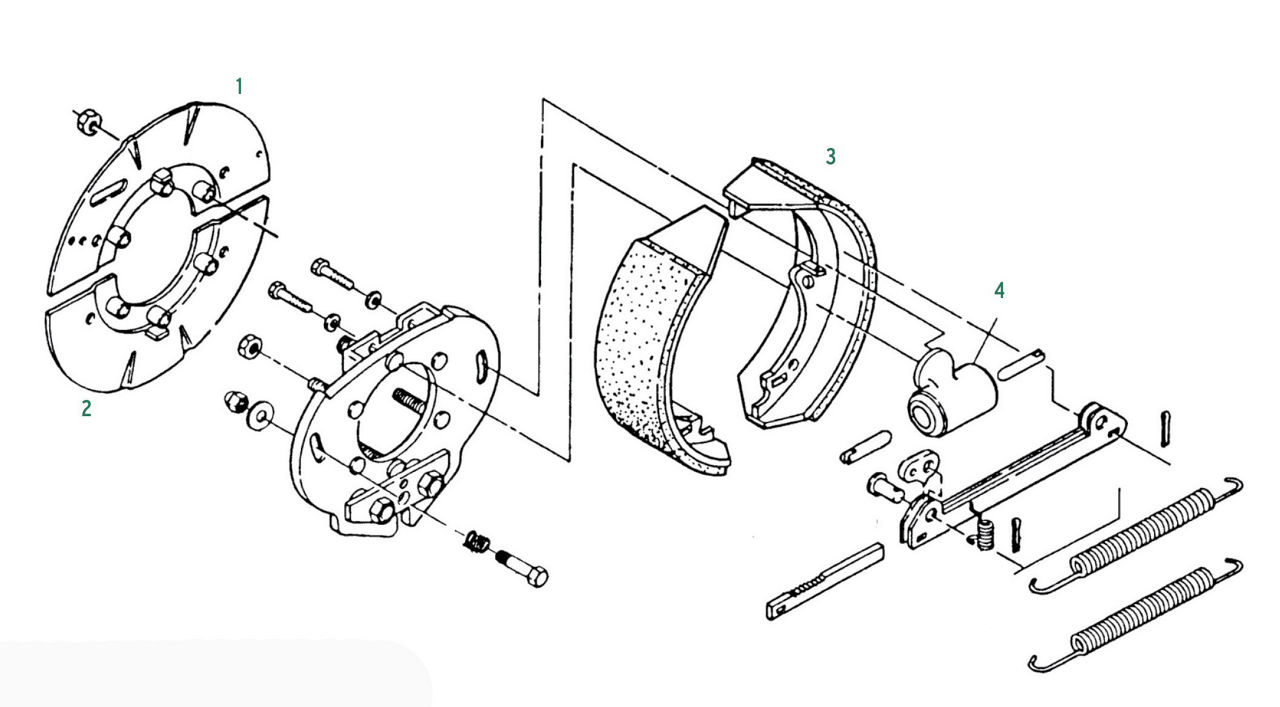

Fits AL-KO, Hayes Axle 9,000lbs-12,000lbs. Right or Left hand 12-1/4" x 3-1/2" hydraulic brake assembly. Complete Brake Assembly (ready to bolt on and connect line). Mounting bolts and nuts are included.
• Fits AL-KO/Hayes 9,000-12,000lb axles.
• Works for Right or Left Hand
• Complete assembly
• For use with a 12 1/4" inside diameter 3 1/2" deep drum
• The shoes are 3 1/2" wide
• Fits AL-KO/Hayes 9,000-12,000lb axles.
• Works for Right or Left Hand
• Complete assembly
• For use with a 12 1/4" inside diameter 3 1/2" deep drum
• The shoes are 3 1/2" wide
Alternate Item Numbers
4743-L/R, 6400195, C08-K23-524-00
Details
| Brake Type | Hydraulic Drum |
|---|---|
| Brake Adjustment Type | Manual Adjust |
| Brake Size | 12-1/4" x 5" |
| Axle Capacity Rating Per Pair | 12K |
| Brake Orientation | Left or Right Side |
| Brake Backing Plate Mounting Bolt Holes | 5 |
| Brake Mounts To | Axle Brake Flange / Spindle |
| Brake Caliper / Cylinder Type | Dual Servo |
| Fits Spindle | #99 Spindle |
| Brake Backing Plate Material | Steel |
| Brake Backing Plate Finish | Painted |
| Brake Shoes / Pads Material | Semi-metallic |
| Brake Backing Plate Color | Black |
| Mounting Hardware | Included |
| Package Type | Retail Packaged |
Shipping Info
| Package Weight | 24 Lbs |
|---|
