Dexter 9,000 lbs Per Pair Capacity (4,500 lbs Each) 12-1/4" x 3-3/8" Nev-R-Adjust® Duo-Servo Hydraulic Drum Trailer Brake, Left Side, 4-Bolt Mount, Black Painted Finish, Bulk
SKU: 23-402
|
Reference Number: 178205
Brand: Dexter
- Genuine Dexter Replacement Part
- CSA Approved Brakes
- All kits are USA made and assembled, and ready to install
- Best in class engineering, warranty, and track record
- Made from high quality domestic steel specifically designed to ensure maximum performance. No imported or substituted components
- Industry leading proven performance in stopping power
- Warranty: 5 Year Premium Warranty
- Mfg SKU: 023-402-00
$428.53
Buy at a location near you -
Find a Dealer
Business Customers can login to:
- See account pricing and available inventory
- Manage account invoices
Dexter 12-1/4" x 3-3/8" 8000lb-9000lb (4 bolt flange) Left hand hydraulic brake. Complete assembly. Self-adjusting design keeps shoes properly aligned for longer-lasting brake that requires less maintenance. Mounts with 4 bolts (not included). Locknuts-6-46 and bolts-7-97 sold separately.
» Was redesigned with forward self-adjusting feature in 1997.
• Fits Dexter 8000lb-9000lb axles(with cast backing and 4 bolt flange)
• For use with a 12 1/4" inside diameter 3 3/8" deep drum
• Shoes are 3-3/8" wide
• Self-adjusting
• Left hand(driver's side)
• Complete assembly ready to install
» Was redesigned with forward self-adjusting feature in 1997.
• Fits Dexter 8000lb-9000lb axles(with cast backing and 4 bolt flange)
• For use with a 12 1/4" inside diameter 3 3/8" deep drum
• Shoes are 3-3/8" wide
• Self-adjusting
• Left hand(driver's side)
• Complete assembly ready to install
Alternate Item Numbers
023-402-00, 6400041, K23-402-00
Details
| Brake Type | Hydraulic Drum |
|---|---|
| Brake Adjustment Type | Forward Self-Adjust |
| Brake Size | 12-1/4" x 3-3/8" |
| Axle Capacity Rating Per Pair | 9K |
| Brake Orientation | Left Side |
| Brake Backing Plate Mounting Bolt Holes | 4 |
| Brake Mounts To | Axle Brake Flange / Spindle |
| Brake Caliper / Cylinder Type | Dual Servo |
| Fits Spindle | DX Spindle |
| Brake Backing Plate Material | Steel |
| Brake Backing Plate Finish | Painted |
| Brake Shoes / Pads Material | Semi-metallic |
| Kitted Options With Hardware | K23-402-00 |
| Brake Backing Plate Color | Black |
| Mounting Hardware | Not Included |
| Package Type | Bulk Packaged |
Shipping Info
| Package Height | 3.85 inches |
|---|---|
| Package Width | 12.5 inches |
| Package Length | 12.5 inches |
| Package Weight | 14 Lbs |

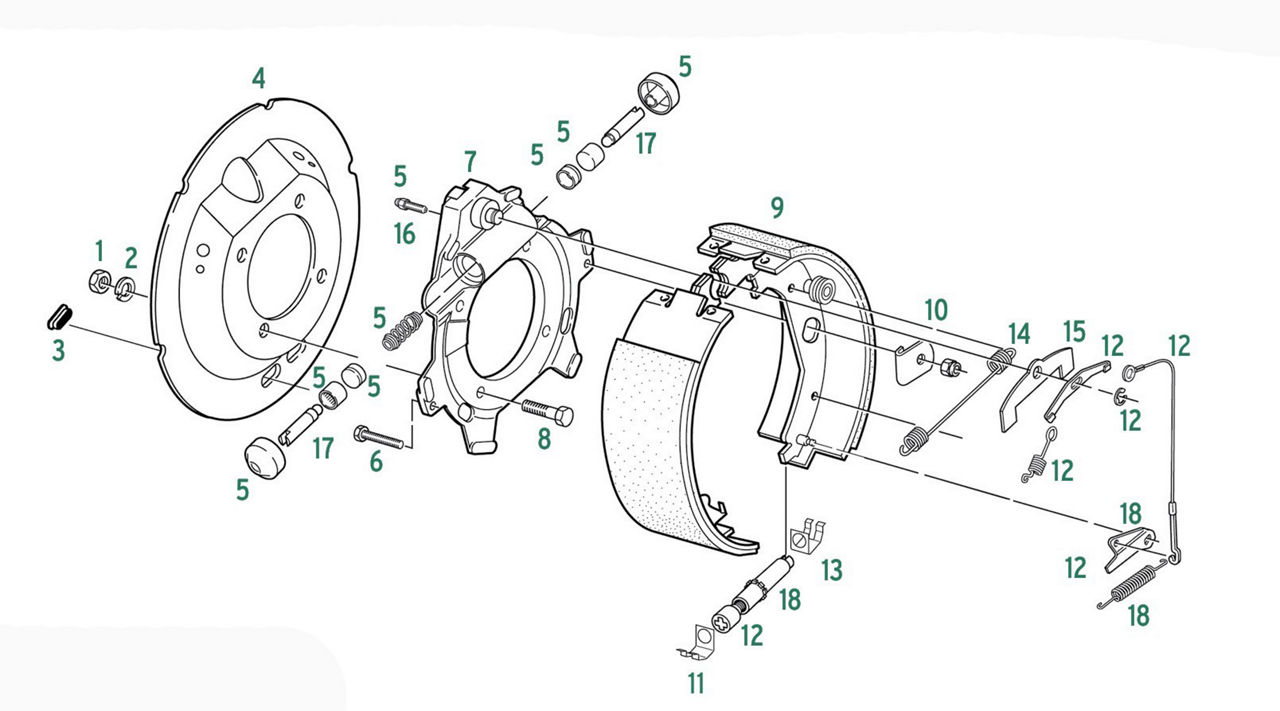

| PART # | REF # | DESCRIPTION | DIAGRAM # |
| 6-46 | 193000 | 1/2"-20 HEX NUT | 1 |
| 12LW | 078200 | 1/2" LOCKWASHER | 2 |
| BP10-220 | 225100 | ADJUSTER SLOT PLUG, 4 PACK | 3 |
| BP15-015 | 227700 | DUST SHIELD, METAL | 4 |
| BP16-040 | 232400 | WHEEL CYLINDER REBUILD KIT (1.00" BORE) | 5 |
| 7-113 | 211508 | SHOE HOLD DOWN SCREW | 6 |
| 7-97 | 192800 | 1/2"-20 BRAKE MOUNTING BOLT | 8 |
| BP04-260 | 208600 | SHOE & LINING | 9 |
| BP06-235 | 214300 | SHOE HOLD DOWN KIT | 10 |
| 46-132 | 236522 | ADJUSTER CLIP, THREAD END | 11 |
| BP10-150 | 223950 | ADJUSTER KIT, FSA (AFTER FEB '97) | 12 |
| 46-133 | 236523 | ADJUSTER CLIP, BARREL END | 13 |
| BP07-240 | 219200 | SHOE RETURN SPRING | 14 |
| 34-62 | 235026 | PISTON STOP BAR (ATER '87) | 15 |
| 54-35 | 235013 | BLEEDER SCREW | 16 |
| BP10-135 | 223700 | ADJUSTER, LEVER & SPRING (PRE FEB. '97) | 18 |
| 54-33 | 235011 | CYLINDER PUSH ROD | 17 |
| BP08-150 | 220900 | ADJUSTER SPRING, (PRE FEB. '97) | NS |
