Dexter 15,000 lbs Per Pair Capacity (7,500 lbs Each) 12-1/4" x 5" Nev-R-Adjust® Duo-Servo Hydraulic Drum Trailer Brake, Right Side, 7-Bolt Mount, Black Painted Finish, Bulk
SKU: 23-407
|
Reference Number: 180300
Brand: Dexter
- Genuine Dexter Replacement Part
- CSA Approved Brakes
- All kits are USA made and assembled, and ready to install
- Best in class engineering, warranty, and track record
- Made from high quality domestic steel specifically designed to ensure maximum performance. No imported or substituted components
- Industry leading proven performance in stopping power
- Warranty: 5 Year Premium Warranty
- Mfg SKU: 023-407-00
$443.98
Buy at a location near you -
Find a Dealer
Business Customers can login to:
- See account pricing and available inventory
- Manage account invoices
Dexter 12-1/4" x 5" 15,000lb (7 bolt flange) Right hand hydraulic brake. Complete assembly. Self-adjusting design keeps shoes properly aligned for longer-lasting brake that requires less maintenance. Mounts with 7 bolts (not included).
Nuts-6-17, bolts-7-116, and washers-5-8 are sold separately.
» Was redesigned with forward self-adjusting feature in 1997.
• Fits Dexter 15,000lb axles(with cast backing and 7 bolt flange)
• For use with a 12 1/4" inside diameter 5" deep drum
• Shoes are 5" wide
• Self-adjusting
• Right hand(passenger's side)
• Complete assembly ready to install
Nuts-6-17, bolts-7-116, and washers-5-8 are sold separately.
» Was redesigned with forward self-adjusting feature in 1997.
• Fits Dexter 15,000lb axles(with cast backing and 7 bolt flange)
• For use with a 12 1/4" inside diameter 5" deep drum
• Shoes are 5" wide
• Self-adjusting
• Right hand(passenger's side)
• Complete assembly ready to install
Alternate Item Numbers
023-407-00, K23-407-00
Details
| Brake Type | Hydraulic Drum |
|---|---|
| Brake Adjustment Type | Forward Self-Adjust |
| Brake Size | 12-1/4" x 5" |
| Axle Capacity Rating Per Pair | 15K |
| Brake Orientation | Right Side |
| Brake Backing Plate Mounting Bolt Holes | 7 |
| Brake Mounts To | Axle Brake Flange / Spindle |
| Brake Caliper / Cylinder Type | Dual Servo |
| Fits Spindle | DX Spindle |
| Brake Backing Plate Material | Steel |
| Brake Backing Plate Finish | Painted |
| Brake Shoes / Pads Material | Semi-metallic |
| Kitted Options With Hardware | K23-407-00 |
| Brake Backing Plate Color | Black |
| Mounting Hardware | Not Included |
| Package Type | Bulk Packaged |
Shipping Info
| Package Height | 5.25 inches |
|---|---|
| Package Width | 12.5 inches |
| Package Length | 12.5 inches |
| Package Weight | 17 Lbs |

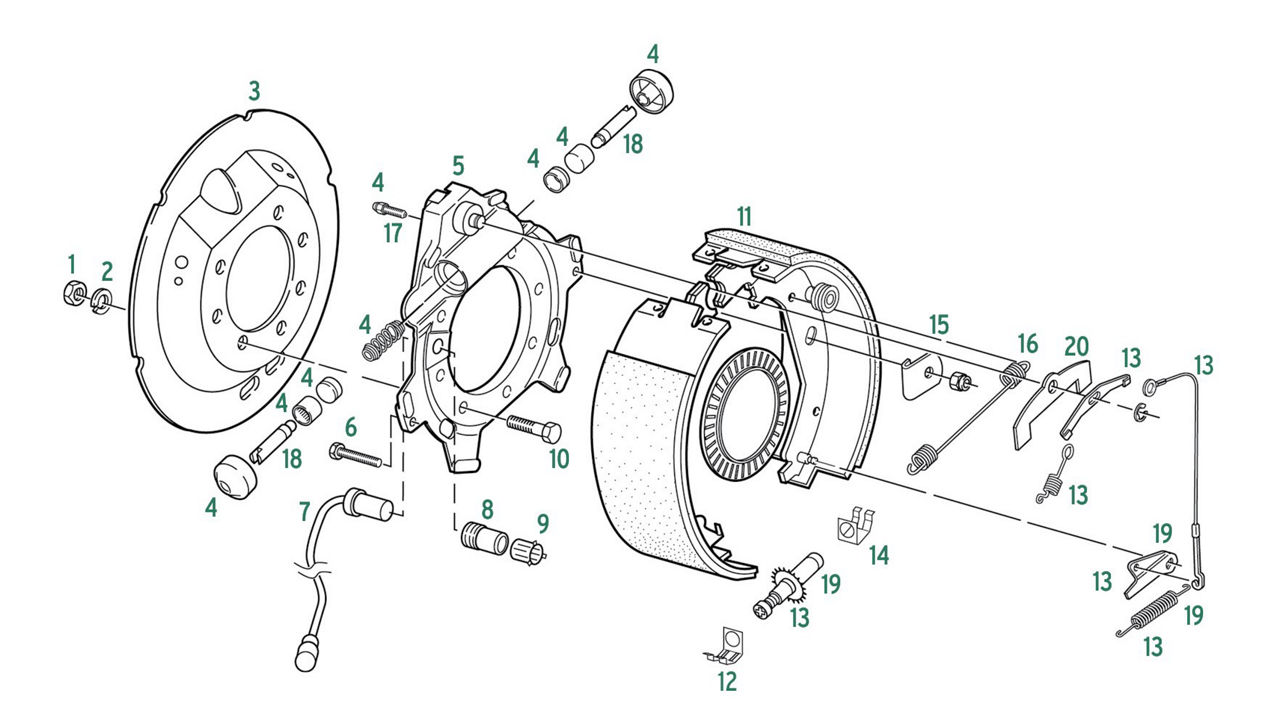

| PART # | REF # | DESCRIPTION | DIAGRAM # |
| 6-17 | 191800 | 7/16"-20 BRAKE MOUNTING HEX NUT | 1 |
| 5-8 | 192000 | 7/16" LOCKWASHER | 2 |
| BP15-190 | 231100 | DUST SHIELD, METAL | 3 |
| K71-082-00 | 232624 | WHEEL CYLINDER REBUILD KIT (1.375" BORE) | 4 |
| 7-113 | 211508 | SHOE HOLD DOWN SCREW | 6 |
| D097-004-00 | 235040 | ABS SENSOR, STRAIGHT | 7 |
| 24-204 | 235041 | ABS SENSOR MOUNTING BLOCK | 8 |
| D097-002-00 | 235042 | ABS SENSOR RETAINING CLIP | 9 |
| 7-116 | 192200 | 7/16"-20 BRAKE MOUNTING BOLT | 10 |
| BP04-390 | 211000 | SHOE & LINING | 11 |
| 46-132 | 236522 | ADJUSTER CLIP. THREAD END | 12 |
| BP10-160 | 223960 | ADJUSTER KIT, FSA (AFTER FEB. '97) | 13 |
| 46-133 | 236523 | ADJUSTER CLIP, BARREL END | 14 |
| BP06-235 | 214300 | SHOE HOLD DOWN KIT | 15 |
| BP07-240 | 219200 | SHOE RETURN SPRING | 16 |
| 54-35 | 235013 | BLEEDER SCREW | 17 |
| 54-33 | 235011 | CYLINDER PUSH ROD | 18 |
| BP10-145 | 223900 | ADJUSTER. LEVER & SPRING (PRE FEB '97) | 19 |
| 34-62 | 235026 | PISTON STOP BAR (AFTER '87) | 20 |
| BP08-150 | 220900 | ADJUSTER SPRING, (PRE FEB. '97) | NS |
