Trailer Parts Pro 3,500 lbs Per Pair Capacity (1,750 lbs Each) Manual Adjust 10" x 2-1/4" Hydraulic Freebacking Left Side Trailer Brake, 4-Bolt Mount Gray Dacromet Coated Finish, Boxed
SKU: HB01-100
|
Reference Number: 188980
Brand:: Trailer Parts Pro
- Universal Fit for Dexter, Rockwell, Hayes / ALKO, & More
- OEM Quality Replacement Part
- CSA Approved Brakes
- Complete Assembly Ready to Bolt On and Wire
- Fits Standard Axles, attaches to the axle brake mounting flange
$148.31
Buy at a location near you -
Find a Dealer
Business Customers can login to:
- See account pricing and available inventory
- Manage account invoices
- Brake Capacity Per Pair: 3.5K
- Forward Self-Adjusting: No
- Brake Position: Left Hand / Driver Side of Trailer
- Brake Size: 10" x 2-1/4"
- Brake Type: Hydraulic Freebacking Drum
- Mounting Holes: 4
- Mounting Hardware Included: No
- Mounting Bolt Size: 7/16"
- Material: Steel
- Finish: Dacromet
- Brake Assembly Complete: Yes
- Brake Assembly Issue: Bulk
Alternate Item Numbers
BH10-35L, 23-344, K23-344-00
Details
| Brake Type | Hydraulic Freebacking |
|---|---|
| Brake Adjustment Type | Manual Adjust |
| Brake Size | 10" x 2-1/4" |
| Axle Capacity Rating Per Pair | 3.5K |
| Brake Orientation | Left Side |
| Brake Backing Plate Mounting Bolt Holes | 4 |
| Brake Mounts To | Axle Brake Flange / Spindle |
| Brake Caliper / Cylinder Type | Single Servo |
| Mounting Bolt Size | 7/16"-20 |
| Brake Magnet Shape | Oval |
| Brake Backing Plate Material | Steel |
| Brake Backing Plate Finish | Dacromet Coated |
| Brake Shoes / Pads Material | Semi-metallic |
| Brake Backing Plate Color | Gray |
| Mounting Hardware | Included |
| Package Type | Retail Packaged |
Shipping Info
| Package Height | 2.85 inches |
|---|---|
| Package Width | 11.5 inches |
| Package Length | 11.5 inches |
| Package Weight | 10 Lbs |

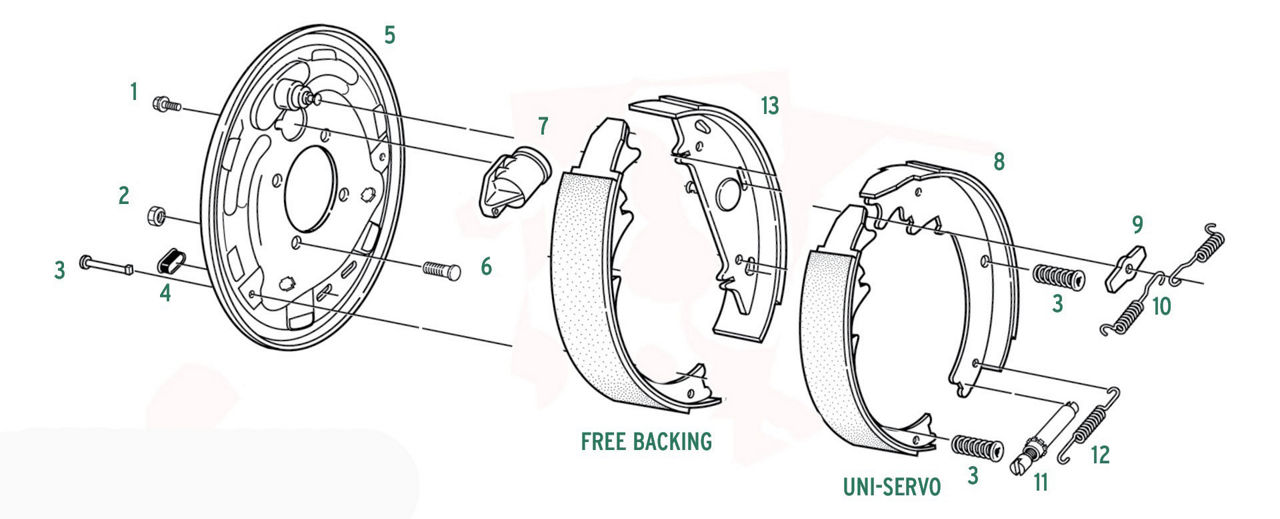

| PART # | REF # | DESCRIPTION | DIAGRAM # |
| 87-1 | 235034 | SCREW AND WASHER ASSEMBLY | 1 |
| 6-17 | 191800 | 7/16"-20 BRAKE MOUNT NUT | 2 |
| BP06-120 | 212500 | SHOE HOLD DOWN SPRINGS | 3 |
| BP10-220 | 225100 | ADJUSTER SLOT PLUG, 4 PACK | 4 |
| D007-041-00 | 190960 | 7/16"-20 PRESS-IN BRAKE MOUNTING STUD | 6 |
| BP17-030 | 233400 | WHEEL CYLINDER ASSEMBLY | 7 |
| BP04-120 | 205800 | SHOE & LINING, UNI-SERVO | 8 |
| D005-113-00 | 235035 | 1/2" WING WASHER | 9 |
| BP07-105 | 216625 | SHOE RETURN SPRINGS, UNI-SERVO | 10 |
| BP10-060 | 222400 | ADJUSTER | 11 |
| BP08-080 | 220200 | ADJUSTER SPRING, UNI-SERVO | 12 |
| BP04-123 | 205810 | SHOE & LINING, DEXTER FREE BACKING | 13 |
| BP04-126 | 205815 | SHOE & LINING, DEMCO FREE BACKING | 13 |
| K71-426 | 216825 | SPRING SET, DEXTER FREE BACKING | NS |
