Trailer Parts Pro 10,000 lbs General Duty Per Pair Capacity (5,000 lbs Each) Forward Self-Adjust 12-1/4" x 3-3/8" Hydraulic Drum Trailer Brake, Left Side, 7-Bolt Mount, Black Painted Finish, Boxed
SKU: HB01-140
|
Reference Number: 189010
Brand: Trailer Parts Pro
- Universal Fit for Dexter and Dexter Clones
- OEM Quality Replacement Part
- CSA Approved Brakes
- Complete Assembly Ready to Bolt On and Wire
- Fits Standard Axles, attaches to the axle brake mounting flange
$668.63
Buy at a location near you -
Find a Dealer
Business Customers can login to:
- See account pricing and available inventory
- Manage account invoices
12-1/4" x 3-3/8" 9,000lb-10,000lb general duty(7 bolt flange)Left hand hydraulic brake. Complete assembly. The forward self-adjusting design keeps shoes properly aligned for longer-lasting brake that requires less maintenance. Mounts with 7 bolts (not included).
Nuts-6-17, bolts-7-116, and washers-5-8 are sold separately.
These components have passed the CSA Standard CAN3-D313-M85 For Trailer Running Gear, a stringent standard mandated by the Government to assure brake effectiveness and structural integrity of the components.
ISO/TS 16949:2002 certified
» Changed to forward self-adjust feature in February 1997
• Fits Dexter 9,000lb-10,000lb general duty axles(with cast backing and 7 bolt flange)
• For use with a 12 1/4" inside diameter 3 3/8" depth drum
• Shoes are 3-3/8" wide
• Self-adjusting
• Left hand(driver's side)
• Complete assembly ready to install
Nuts-6-17, bolts-7-116, and washers-5-8 are sold separately.
These components have passed the CSA Standard CAN3-D313-M85 For Trailer Running Gear, a stringent standard mandated by the Government to assure brake effectiveness and structural integrity of the components.
ISO/TS 16949:2002 certified
» Changed to forward self-adjust feature in February 1997
• Fits Dexter 9,000lb-10,000lb general duty axles(with cast backing and 7 bolt flange)
• For use with a 12 1/4" inside diameter 3 3/8" depth drum
• Shoes are 3-3/8" wide
• Self-adjusting
• Left hand(driver's side)
• Complete assembly ready to install
Alternate Item Numbers
BH1225-100L, 23-410, K23-410-00
Details
| Brake Type | Hydraulic Drum |
|---|---|
| Brake Adjustment Type | Forward Self-Adjust |
| Brake Size | 12-1/4" x 3-3/8" |
| Axle Capacity Rating Per Pair | 10K HD |
| Brake Orientation | Left Side |
| Brake Backing Plate Mounting Bolt Holes | 7 |
| Brake Mounts To | Axle Brake Flange / Spindle |
| Brake Caliper / Cylinder Type | Dual Servo |
| Brake Magnet Shape | Oval |
| Brake Backing Plate Material | Steel |
| Brake Backing Plate Finish | Painted |
| Brake Shoes / Pads Material | Semi-metallic |
| Brake Backing Plate Color | Black |
| Mounting Hardware | Included |
| Package Type | Retail Packaged |
Shipping Info
| Package Height | 4.25 inches |
|---|---|
| Package Width | 12.5 inches |
| Package Length | 12.5 inches |
| Package Weight | 16 Lbs |

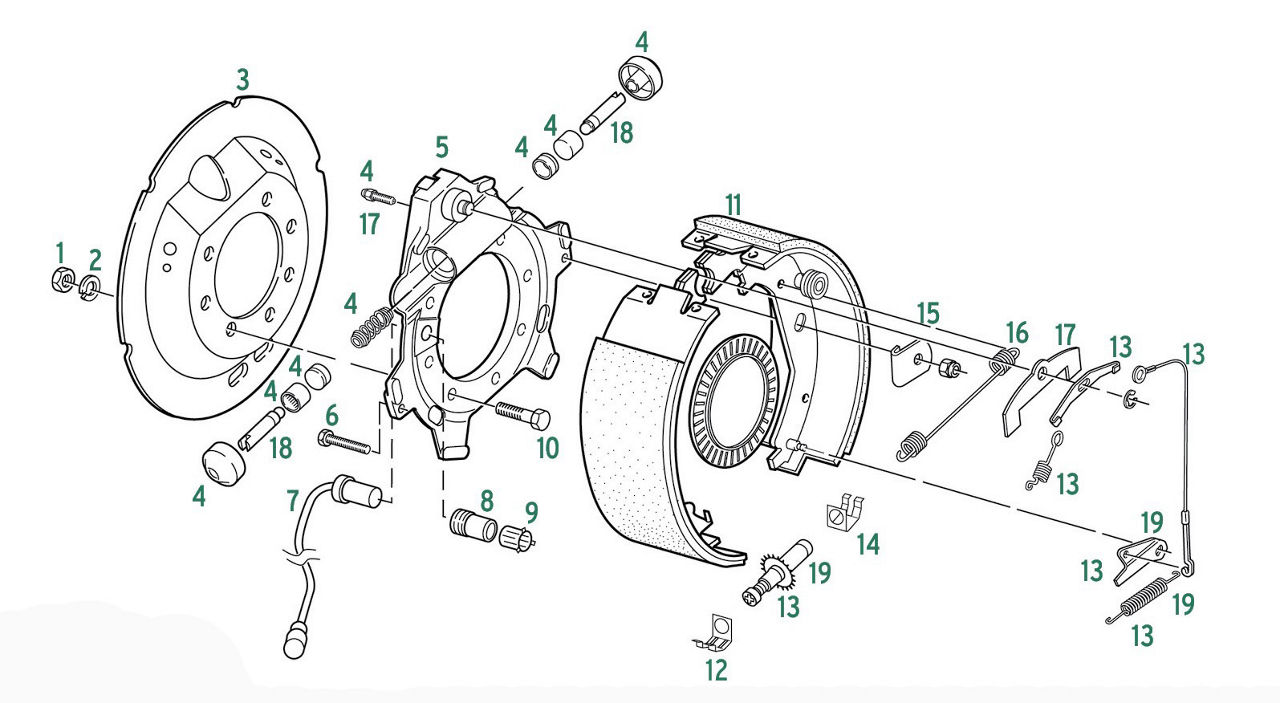

| PART # | REF # | DESCRIPTION | DIAGRAM # |
| 6-17 | 191800 | 7/16"-20 BRAKE MOUNTING HEX NUT | 1 |
| 5-8 | 192000 | 7/16" LOCKWASHER | 2 |
| BP15-085 | 229100 | DUST SHIELD, METAL | 3 |
| BP16-050 | 232600 | WHEEL CYLINDER REBUILD KI (1.25" BORE) | 4 |
| 7-113 | 211508 | SHOE HOLD DOWN SCREW | 6 |
| D097-004-00 | 235040 | ABS SENSOR, STRAIGHT | 7 |
| 24-204 | 235041 | ABS SENSOR MOUNTING BLOCK | 8 |
| D097-002-00 | 235042 | ABS SENSOR RETAINING CLIP | 9 |
| 7-116 | 192200 | 7/16"-20 BRAKE MOUNTING BOLT | 10 |
| BP04-270 | 208800 | SHOE & LINING | 11 |
| 46-132 | 236522 | ADJUSTER CLIP. THREAD END | 12 |
| BP10-160 | 223960 | ADJUSTER KIT, FSA (AFTER FEB. '97) | 13 |
| 46-133 | 236523 | ADJUSTER CLIP, BARREL END | 14 |
| BP06-235 | 214300 | SHOE HOLD DOWN KIT | 15 |
| BP07-240 | 219200 | SHOE RETURN SPRING | 16 |
| 54-35 | 235013 | BLEEDER SCREW | 17 |
| 34-62 | 235026 | PISTON STOP BAR (AFTER '87) | 20 |
| 54-33 | 235011 | CYLINDER PUSH ROD | 18 |
| BP10-145 | 223900 | ADJUSTER. LEVER & SPRING (PRE FEB '97) | 19 |
| BP08-150 | 220900 | ADJUSTER SPRING, (PRE FEB. '97) | NS |
