Hub Kit Complete, Loose Components, 865, Hub Pilot, 10,000 Capacity Per Pair, Oil Bath, Dexter®
$586.70
Business Customers can login to:
- See account pricing and available inventory
- Manage account invoices
Dexter Hub Kit W/ 8 on 6.5" Bolt Pattern For 9,000 lb & 10,000lb GD Axles Manufactured Before 07/2009
Dexter hub kits come with some of your main components like the inner and outer bearings. There is no need to worry about the races as they are already pressed into the hub for you. You will also get the oil seal, oil cap and the wheel nuts for the hub. Hub includes 5/8" studs pressed in and a wheel retaining ring. This hub is designed for use with 9-10K GD axle spindles. Each hub has a capacity if 5,000 lbs. Spindle nut, spindle washer and drum are sold separately.
»This Hub kit is designed for 9-10K General Duty Dexter Axles made Before July of 2009 and 9K Dexter axles made after October 1989.
Items in Kit:
• 1 387A Inner Bearing (2.25" ID)
• 1 25580 Outer Bearing (1.75" ID)
• 1 25520 Outer Race (Already Pressed In) 3.265" OD
• 1 382A Inner Race (Already Pressed In) 3.813" OD
• 1 10-51 Oil Seal (2.875" x 3.88")
• 1 21-88 Oil Cap
• 1 46-32 EZ Oil Cap Plug
• 8 6-109 Coned Wheel Nuts
• 1 33-52-1 Wheel Retaining Ring
• 1 8 on 6.5" Hub only
• 5,000lb Capacity Per Hub
• Drum sold separately
Alternate Item Numbers
7650713
Details
| Bolt Pattern | 8 on 6.5" |
|---|---|
| Brake Size | 12-1/4" x 3-3/8" |
| Axle Capacity Rating Per Pair | 9K - 10K GD |
| Included with this item | Hub, Bearings, Seal, Grease Cap, Lug Nuts |
| Hub Drum Pilot Diameter | 4.75" |
| Inner Bearing Part Number | 387A |
| Lubrication | Oil Bath |
| Outer Bearing Part Number | 25580 |
| Package Type | Bulk Packaged |
Shipping Info
| Package Weight | 44.3 Lbs |
|---|
Q: Can I upgrade the hubs on my mobile home axle?
A: Some of the older mobile home axles can be upgraded to either 6 or 8 bolt hubs, depending on the existing mobile home hub’s bearing combination. Please determine inner and outer bearing numbers (these universal numbers are etched into the bearing), looking for #25580 inner and LM67048 or 15123 outer. If these are the numbers on your bearings, you have the option to upgrade the hubs to accommodate regular-style wheels. Newer mobile home axles cannot be upgraded.
Q: Why do the trailer hub dust caps come off while driving?
A: Typical trailer hub dust caps are formed of light gauge steel, and over-repeated installations become “loose” as the portion of the dust cap lip that fits into the hub is compressed, slightly reducing its overall diameter. In addition, the hub opening itself may wear, making the fit looser still. Consider the following tips when reinstalling dust caps on your trailer hubs: Ensure that the hub bore where the cap fits is completely free of grease/oils, increasing the friction/grip of the hub. Likewise to the dust cap, ensure that the part of the cap fitting into the hub is also clean of grease/oils. Application of a light film of gasket sealer (aka Permatex, etc.) to the lip of the dust cap before installation will serve as a “glue” to assist in bonding the cap to the hub until next time you WANT the dust cap to come off. Another installation tip is to turn the dust cap on its side and lightly “tap” the side with a hammer to slightly “oval” the dust cap, ensuring that the dust cap lip and hub bore come in firm contact with each other upon cap installation. If the above suggestions do not work for you, replace dust caps with new ones for a tighter, like-new fit.
Q: How do I figure out what bearings to order for my trailer?
A: The hub will have to be removed and bearings removed for physical identification. Bearings will have specific numbers etched into the side of the bearing center. These numbers are universal; all tapered roller bearing manufacturers use the same numbering system for bearing and race components. We will need to know the inner and outer bearing numbers in the hub. We’ll also need to know the number of wheel studs in the hub and a couple other measurements. Having the hub and a ruler handy when you call will greatly help speed up the process of finding the right hub for your needs.

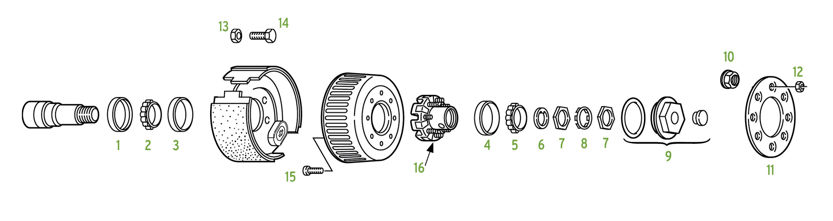

| PART # | REF # | DESCRIPTION | DIAGRAM # |
| 10-51 | 161650 | OIL SEAL, UNITIZED 2.875" ID X 3.88" OD | 1 |
| 387A | 131400 | INNER BEARING | 2 |
| 382A | 137400 | INNER RACE | 3 |
| 25520 | 136200 | OUTER RACE | 4 |
| 25580 | 130800 | OUTER BEARING | 5 |
| 5-70 | 166600 | SPINDLE WASHER, 1 1/2" ID, TONGUE STYLE | 6 |
| 6-96 | 165200 | SPINDLE NUT, 1 1/2" ID FINE THREAD | 7 |
| 5-71 | 168400 | SPINDLE WASHER, 1 1/2" ID, TANG STYLE | 8 |
| RG04-270 | 150955 | COMPLETE OIL CAP KIT | 9 |
| K21-302-00 | 154203 | FORTRESS THREADED OIL CAP 9K AND 10K GD | 9 |
| 95188 | 141600 | WHEEL NUT, 5/8" FLANGED | 10 |
| 33-52-1 | 142800 | WHEEL RETAINING RING | 11 |
| 6-109 | 141000 | WHEEL NUT, 5/8" CONE | 12 |
| 6-17 | 191800 | 7/16"-20 BRAKE MOUNTING HEX NUT | 13 |
| 7-116 | 192200 | 7/16"-20 x 1.75" BRAKE MOUNTING BOLT | 14 |
| 7-245 | 150500 | DRUM MOUNTING BOLT, 8 REQUIRED | 15 |
| 7-115 | 145600 | STUD, 5/8" DIA. DRIVE-IN | 16 |
